Miejsce pochodzenia:
Chiny
Nazwa handlowa:
Belparts
Orzecznictwo:
CE
Numer modelu:
John Deere 300G LC 300G
| Hydraulic Parts | Hydraulic Pump | Final Drive | Travel Reduction |
| Swing Motor | Swing Reduction | Control Valve | Gear Parts |
| Slew Bearing | Engine Assembly | Hydraulic Cylinder | ECU |

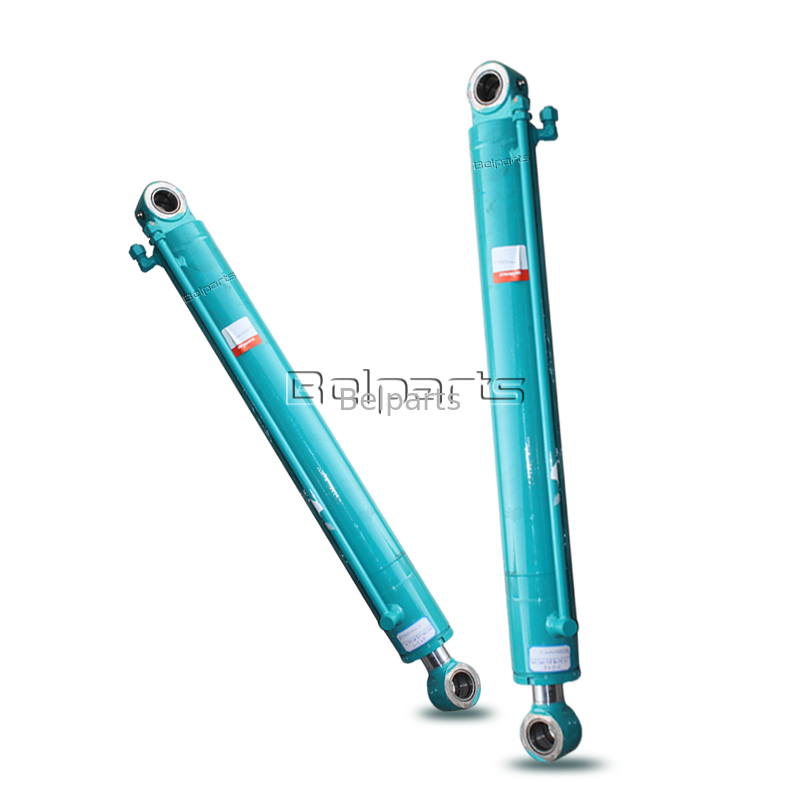

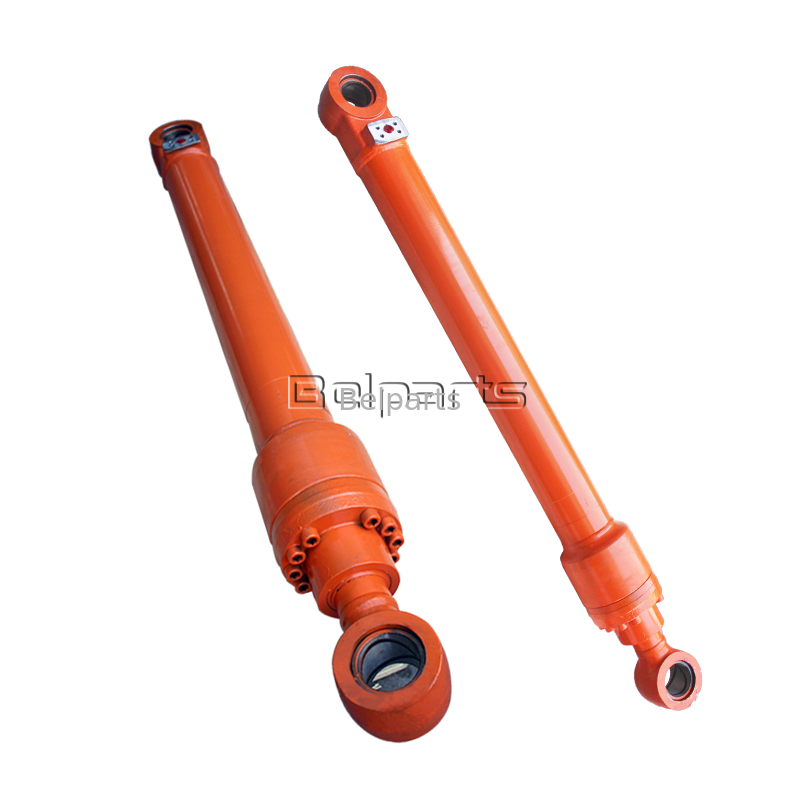

This premium aftermarket hydraulic arm (stick) cylinder (FYA00004896) is a direct OEM replacement for John Deere 470G / 470G LC large excavators. It delivers powerful, consistent arm movement for heavy‑duty digging, trenching, and material handling. Engineered to match OEM mounting points, hydraulic ports, and performance specs, it enables bolt‑on installation and reliable service in earthmoving, quarrying, and infrastructure projects.
| Parameter | Basic Product Information |
|---|---|
| Application | Excavator arm (stick) hydraulic system; heavy‑duty digging & material handling |
| Product Name | Hydraulic Arm (Stick) Cylinder |
| Compatible Model | John Deere 470G, 470G LC |
| Part Number | FYA00004896 |
| Product Grade | Premium aftermarket replacement |
| Certifications | ISO9001, CE |
| Warranty | 12‑month full quality warranty |
| MOQ | 1 piece |
Calibrated to John Deere 470G/470G LC hydraulic requirements (33 MPa working pressure).
| Specification | Technical Data |
|---|---|
| Cylinder Bore | 190 mm |
| Piston Rod Diameter | 130 mm |
| Working Stroke | 1,980 mm |
| Rated Operating Pressure | 33.0 MPa (4,785 psi) |
| Hydraulic Test Pressure | 49.5 MPa (≈7,180 psi) |
| Cylinder Barrel | Forged seamless alloy steel, high pressure & impact resistant |
| Piston Rod | Heat‑treated alloy steel, hard chrome plated (25–45 μm, 68–72 HRC) |
| Seal Set | High‑pressure multi‑lip composite seals, oil & aging resistant |
| Surface Finish | Electrophoretic anti‑rust + weather‑resistant topcoat |
| Operating Temp | -20°C to 80°C |
| Design Life | 10,000+ working hours under heavy load |
| Oil Compatibility | Matches John Deere Hy‑Gard™ hydraulic fluids |
| Weight | ≈950 kg |

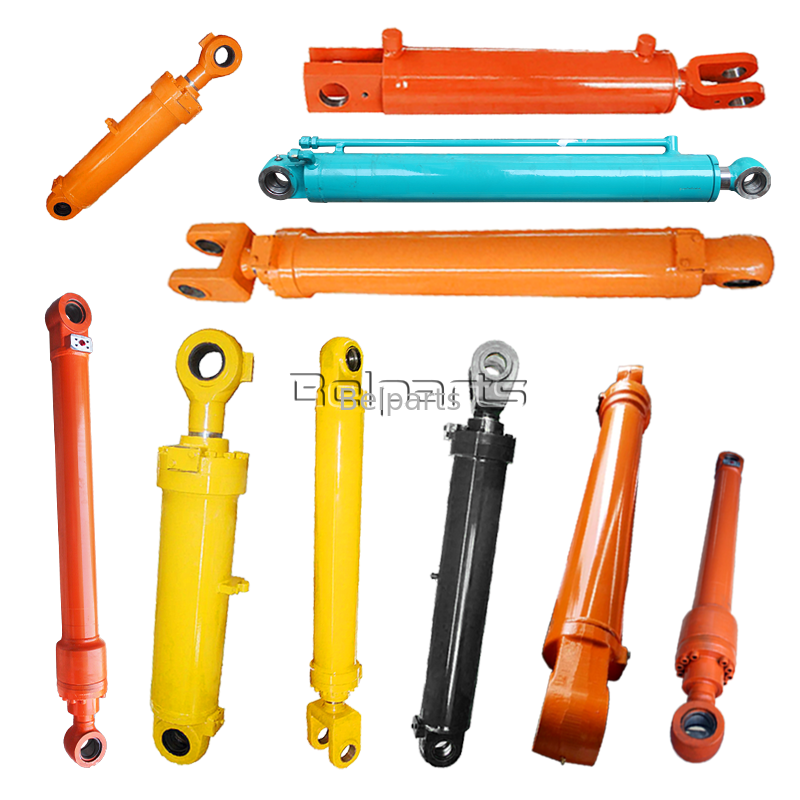

Belparts is a global supplier of aftermarket excavator hydraulic components with 10+ years of experience. We specialize in high‑quality, cost‑effective cylinders for major brands including John Deere, Link‑Belt, Kobelco, CASE, and more. Our parts are widely used by construction companies and dealers worldwide, backed by stable quality and professional service.
Q: Which excavator does this fit?
A: John Deere 470G / 470G LC only; part number FYA00004896.
Q: Is it compatible with the original hydraulic system?
A: Yes—all dimensions and performance parameters follow OEM standards.
Q: What certifications do you have?
A: ISO9001 and CE certified.
Q: Can I order one piece?
A: Yes, MOQ is 1 piece for urgent maintenance.
Wyślij do nas zapytanie
