Miejsce pochodzenia:
Chiny
Nazwa handlowa:
Belparts
Orzecznictwo:
CE
Numer modelu:
R290-7A

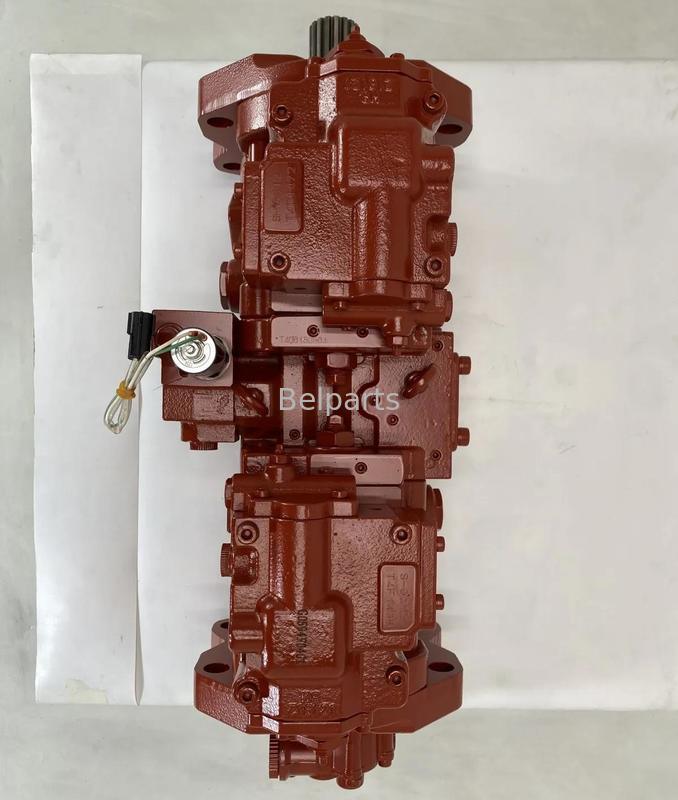

R290-7A Main Hydraulic Pump for Hyundai Excavator Parts 31N8-10080 K5V140DTP Axial Piston Pump
| Application | Excavator |
|---|---|
| Part name | Hydraulic Main pump |
| Machine model | R290-7A |
| Type | K5V140DTP |
| Part number | 31N8-10080 |
| Warranty | 12 months |
| Delivery time | 3-7 Days |
| Shipment | Express/freight/sea/train |
| Quality | Made in China |
| MOQ | 1 Piece |
| Payment term | T/T, Trade Assurance, Paypal and et |
| # | Part No | Part Name | Qty. |
|---|---|---|---|
| * | 31N8-10080 | MAIN PUMP | 1 |
| *-1 | XJBN-00963 | MAIN PUMP UNIT | 1 |
| 111 | XJBN-00953 | SHAFT(F)-DRIVE | 1 |
| 113 | XJBN-00952 | SHAFT(R)-DRIVE | 1 |
| 116 | XJBN-00951 | GEAR-1ST | 1 |
| 123 | XJBN-00950 | BEARING-ROLLER | 2 |
| 124 | XJBN-00949 | BEARING-NEEDLE | 2 |
| 127 | XJBN-00081 | SPACER-BEARING | 3 |
| N141 | XJBN-00948 | BLOCK-CYLINDER | 2 |
| N151 | XJBN-00947 | PISTON | 18 |
| N152 | XJBN-00946 | SHOE | 18 |
| 153 | XJBN-00945 | PLATE-SET | 2 |
| 156 | XJBN-00083 | BUSHING-SPHERICAL | 2 |
| 157 | XJBN-00944 | SPRING-CYLINDER | 18 |
| 211 | XJBN-00085 | PLATE-SHOE | 2 |
| N212 | XJBN-00943 | PLATE-SWASH | 2 |
| N214 | XJBN-00071 | BUSHING-TILTING | 2 |
| 251 | XJBN-00942 | SUPPORT-SP | 2 |
| 261 | XJBN-00941 | COVER(F)-SEAL | 1 |
| 271 | XJBN-00088 | CASING-PUMP | 2 |
| 312 | XJBN-00940 | BLOCK-VALVE | 1 |
| N313 | XJBN-00939 | PLATE(R)-VALVE | 1 |
| N314 | XJBN-00938 | PLATE(L)-VALVE | 1 |
| N326 | XJBN-00937 | COVER | 1 |
| 401 | XJBN-00090 | SCREW-HEX SOC HD | 8 |
| 406 | XJBN-00029 | SCREW-HEX | 4 |
| 414 | XJBN-00160 | SCREW-SOCKET | 4 |
| 466 | XJBN-00030 | PLUG | 2 |
| 467 | XJBN-00936 | PLUG | 2 |
| 468 | XJBN-00031 | PLUG | 4 |
| 490 | XJBN-00032 | PLUG | 32 |
| N531 | XJBN-00956 | PIN-TILTING | 2 |
| 532 | XJBN-00955 | PISTON-SERVO | 2 |
| 534 | XJBN-00092 | STOPPER(L) | 2 |
| 535 | XJBN-00093 | STOPPER(S) | 2 |
| N541 | XJBN-00859 | SEAT | 4 |
| N543 | XJBN-00860 | STOPPER | 2 |
| N544 | XJBN-00861 | STOPPER | 2 |
| N545 | XJBN-00038 | BALL-STEEL | 4 |
| N548 | XJBN-00360 | PIN-FEED BACK | 2 |
| K702 | XJBN-00918 | O-RING | 2 |
| K710 | XJBN-00095 | O-RING | 2 |
| K717 | XJBN-00096 | O-RING | 4 |
| K724 | XJBN-00044 | O-RING | 16 |
| K725 | XJBN-00045 | O-RING | 4 |
| K726 | XJBN-00233 | O-RING | 2 |
| K728 | XJBN-00046 | O-RING | 4 |
| K732 | XJBN-00912 | O-RING | 2 |
| K774 | XJBN-00906 | SEAL-OIL | 1 |
| K789 | XJBN-00099 | RING-BACK UP | 2 |
| K792 | XJBN-00100 | BACK-UP RING | 2 |
| 806 | XJBN-00101 | NUT-HEX | 2 |
| 808 | XJBN-00051 | NUT | 2 |
| 824 | XJBN-00102 | RING-SNAP | 2 |
| 885 | XJBN-00103 | PIN-VALVE PLATE | 2 |
| 886 | XJBN-00054 | PIN-SPRING | 4 |
| 901 | XJBN-00104 | BOLT-EYE | 2 |
| 953 | XJBN-00954 | SCREW-SET | 2 |
| 954 | XJBN-00106 | SCREW-SET | 2 |
| 981 | XJBN-00156 | NAME PLATE | 1 |
| 983 | XJBN-00455 | PIN | 2 |
| *-2 | XJBN-00964 | REGULATOR ASSY | 1 |
| *-3 | XJBN-00965 | GEAR PUMP ASSY | 1 |
| *-4 | XJBN-00014 | CASING ASSY-EPPR VLV | 1 |
| 011 | XJBN-00934 | PISTON ASSY | 2 |
| 013 | XJBN-00933 | CYLINDER(R) ASSY | 1 |
| 014 | XJBN-00932 | CYLINDER(L) ASSY | 1 |
| 030 | XJBN-00931 | SWASH PLATE ASSY | 2 |
| 041 | XJBN-00072 | CHECK VALVE ASSY 1 | 2 |
| 042 | XJBN-00075 | CHECK VALVE ASSY 2 | 2 |
| 530 | XJBN-00930 | TILTING PIN ASSY | 2 |
| K | XJBN-01123 | SEAL KIT-PUMP UNIT | 1 |
| N | @ | FUEL INJECTION PIPE & NOZZLE | AR |
More Branded Accessories are Available
Belparts have a large workshop for excavator parts producing, from material cutting, welding, heating treating, assembling, debugging, painting, testing, every part we will confirm before leaving the factory.
If possible, you can send us pictures of old products, nameplate or the size for reference.
The warranty is 6/12 Months based on the item details.
We can receive payment through T/T, Western Union, Paypal(for small amount), Alibaba trade assurance.
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock, we will inform you before placing the order.
First of all, I have confidence in the quality of our products, if you really found something wrong, pls provide pictures for us and we will check. After it is confirmed, pls return to us, we will offer the correct item.
We are specialized in the excavator spare parts, such as travel motor gearbox/ass'y/parts, swing gearbox/ass'y/motor/parts, hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
