Miejsce pochodzenia:
Chiny
Nazwa handlowa:
Belparts
Orzecznictwo:
CE
Numer modelu:
EX270 EX270LC EX300 EX300LC EX300H EX300LCH
| Application | Excavator |
|---|---|

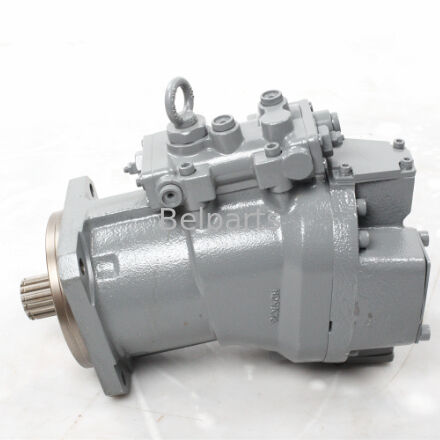

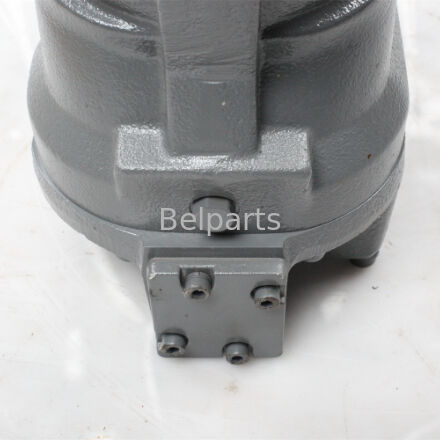

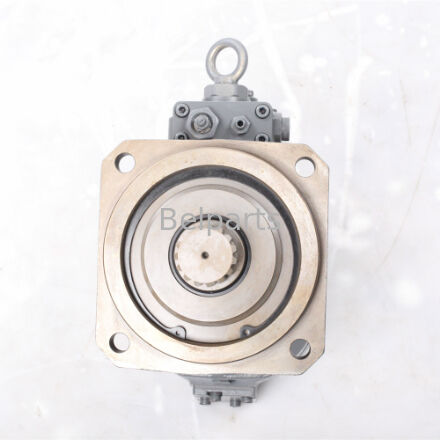

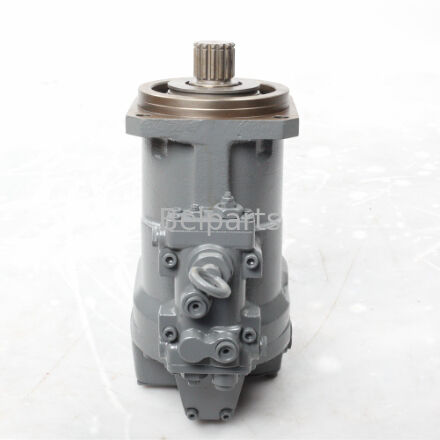

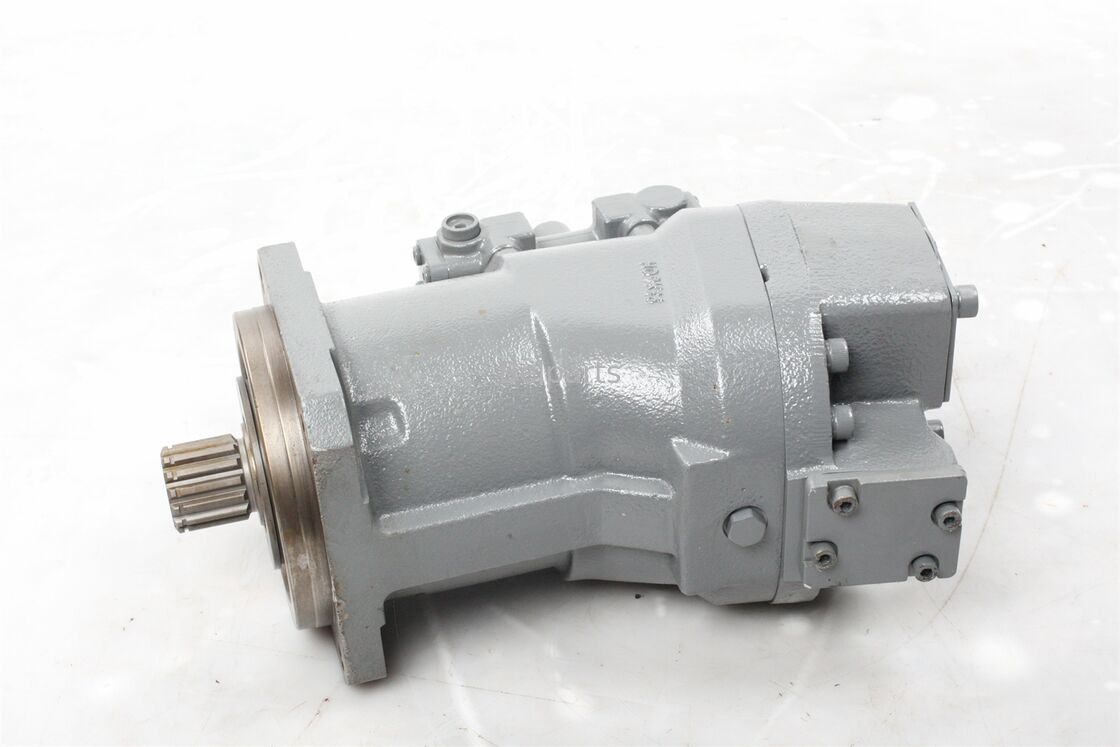

| Part name | Hydraulic Piston pump |
| Model |
EX270 EX270LC EX300 EX300LC EX300H EX300LCH |
| Part munber | 9075749 9075752 |
| Type | HPV145CW |
| Warranty | 12 months |
| Delivery time | 3-7 Days |
| Shipment | Express/freight/sea/train |
| Quality | Original brand new |
| MOQ | 1 Piece |
| Payment term | T/T, Trade Assurance, Paypal and etc |
| Category | Construction Machinery Part |
| # | Part No | Part Name | Qty. |
|---|---|---|---|
| 9075749 | PUMP; SINGLE | 1 | |
| 01 | 1010399 | . CASING; PUMP | 1 |
| 01 | 1010399 | . CASING; PUMP | |
| 01 | 1014184 | . CASING; PUMP | 1 |
| 02 | 8046112 | . PACKING | 1 |
| 04 | 2023051 | . DISC; DRIVING | 1 |
| 06 | 4190694 | . BRG.; ROL. | 1 |
| 07 | 4209323 | . BRG.; ROL. | 1 |
| 08 | 3035965 | . SPACER | 1 |
| 09 | 4191665 | . NUT; BRG. | 1 |
| 12 | 8033955 | . PISTON | 7 |
| 12 | 8049118 | . PISTON | 7 |
| 14 | 2022744 | . ROTOR | 1 |
| 16 | 8035539 | . SHAFT; CENTER | 1 |
| 17 | 4184779 | . BALL | 1 |
| 18 | 4191667 | . RING; RETAINING | 1 |
| 19 | 4194362 | . SPRING; COMPRES. | 1 |
| 20 | 4193062 | . RING; RETAINING | 1 |
| 21 | 4198956 | . PIN | 1 |
| 22 | 4191666 | . SEAL; OIL | 1 |
| 22 | 4232070 | . SEAL; OIL | 1 |
| 23 | 3035966 | . COVER; SEAL | 1 |
| 24 | 4191664 | . O-RING | 1 |
| 25 | 4094325 | . RING; RETAINING | 1 |
| 29 | 4193132 | . BUSHING | 1 |
| 31 | 3039569 | . LINK | 1 |
| 32 | 9724756 | . LEVER | 2 |
| 34 | 4179179 | . PIN | 2 |
| 35 | 4179177 | . PIN | 2 |
| 36 | 4200227 | . PIN | 1 |
| 37 | 4179176 | . PIN | 1 |
| 38 | 4146370 | . RING; RETAINING | 6 |
| 40 | 8041179 | . HEAD ASS'Y | 1 |
| 40 | 8041179 | . HEAD ASS'Y | |
| 40 | 8041517 | . HEAD ASS'Y | 1 |
| 40 | 8041517 | . HEAD ASS'Y | |
| 40A | .. VALVE | 1 | |
| 40B | .. HEAD | 1 | |
| 40 | . HEAD ASS'Y | 1 | |
| 40A | 2035307 | .. VALVE | 1 |
| 40B | 1011957 | .. HEAD | 1 |
| 41 | 3036326 | . PISTON; SERVO | 1 |
| 42 | 4193245 | . PIN | 1 |
| 43 | 4179838 | . SCREW; SET | 1 |
| 46 | 4099290 | . PIN; SPRING | 2 |
| 48 | 4180349 | . O-RING | 10 |
| 49 | M341245 | . BOLT; SOCKET | 8 |
| 50 | 495841 | . WASHER; SPRING | 8 |
| 51 | 4108720 | . PLUG | 2 |
| 51 | 4108720 | . PLUG | 1 |
| 51A | 957366 | .. O-RING | 1 |
| 52 | 4204862 | . STOPPER | 1 |
| 53 | 955020 | . O-RING | 1 |
| 59 | 984623 | . O-RING | 1 |
| 63 | M340820 | . BOLT; SOCKET | 8 |
| 64 | 4514388 | . WASHER; SPRING | 8 |
| 65 | 4216295 | . STOPPER | 1 |
| 66 | 9075750 | . REGULATOR | 1 |
| 69 | A810055 | . O-RING | 1 |
| 70 | 4515041 | . PIN; SPRING | 2 |
| 73 | 4092534 | . PLUG | 1 |
| 73 | 9089486 | . PLUG | 1 |
| 73A | 4509180 | .. O-RING | 1 |
| 75 | 3039520 | . NAME-PLATE | 1 |
| 76 | M492564 | . SCREW; DRIVE | 2 |
