Name: YANMAR B22 B22-1 B22-2 B22-2A B22-2B Main Hydraulic Pump 172141-73100 Rexroth AP2D14 For Mini Excavator Parts
Brand: GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED
SKU: B22 B22-1 B22-2 B22-2A B22-2B
Price: 475.00 USD
Availability: InStock

Do domu > produkty > Części do koparek hydraulicznych >

YANMAR B22 B22-1 B22-2 B22-2A B22-2B Main Hydraulic Pump 172141-73100 Rexroth AP2D14 For Mini Excavator Parts

Miejsce pochodzenia:

Chiny

Nazwa handlowa:

Belparts

Orzecznictwo:

ISO9001 / 2006/42/EC

Numer modelu:

B22 B22-1 B22-2 B22-2A B22-2B

Skontaktuj się z nami

Poproś o wycenę

YANMAR B22 B22-1 B22-2 B22-2A B22-2B Main Hydraulic Pump 172141-73100 Rexroth AP2D14 For Mini Excavator Parts

Szczegóły produktu

Model:

YANMAR B22 B22-1 B22-2 B22-2A B22-2B

typ:

AP2D14

Nazwa części:

pompa hydrauliczna

Jakość:

Wysoka jakość na rynku wtórnym

Wysyłka:

Morski / lotniczy / ekspresowy DHL FEDEX UPS

Gwarancja:

1 rok

Numer części:

172141-73100

Aplikacja:

koparka

Warunki płatności i wysyłki

Minimalne zamówienie

1 szt

Cena

Negotiated price

Szczegóły pakowania

Opakowanie drewniane

Czas dostawy

1 ~ 5 dni

Zasady płatności

T/T, gwarancja handlu, PayPal, L/C, D/P, D/A, Western Union, MoneyGram

Możliwość Supply

100 szt./miesiące

ZAŁĄCZONE PRODUKTY

YANMAR VIO45 VIO45-5 VIO55-5B VIO55-6A VIO55-6B Main Hydraulic Pump PSVD2-21E B0600-21031 OEM 172961-73102 For Mini Excavator Parts

Najlepszą cenę

Główna pompa wykopalni R55-7 R60 Hydrauliczna pompa 31M8-10020 31M8-10021 dla Hyundai

Najlepszą cenę

Kubota KX161-3 KX161-3S Main Hydraulic Pump PSVL-54CG-16 B0610-54010 OEM RD538-61112 RD538-61111 RD538-61115 RD411-61113 for Mini Excavator

Najlepszą cenę

Pompy hydrauliczne Kubota KX161-3 KX163-5 KX165 KX183-3 Mini części koparki KYB PSVL2-27CG-1 B0210-27001 RD411-61113

Najlepszą cenę

Skontaktuj się z nami

+86 19924616345

ron@belparts-china.com

86-020-32384870

Skontaktuj się teraz

Opis produktu

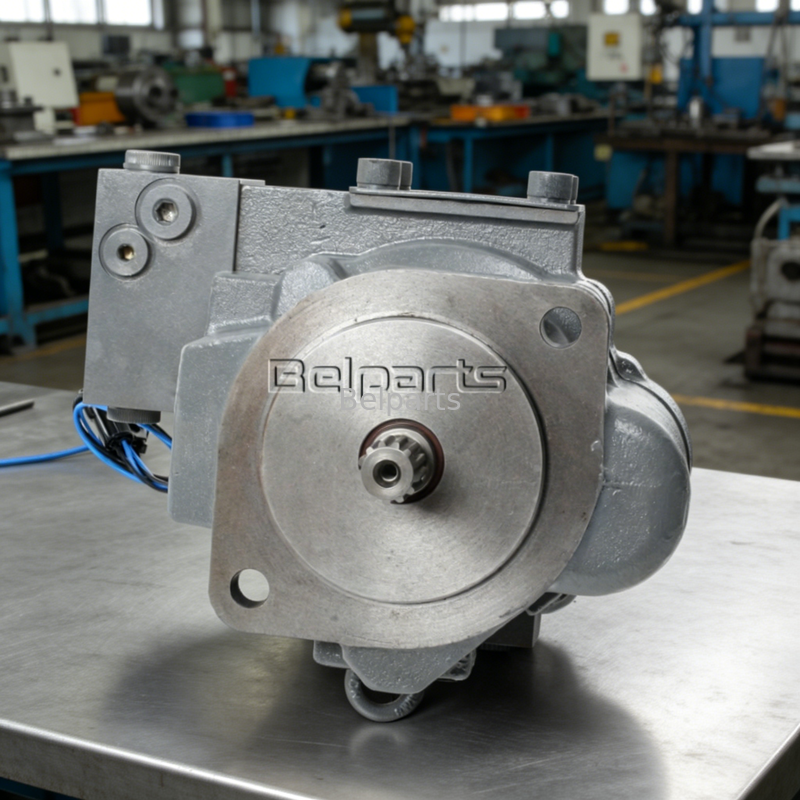

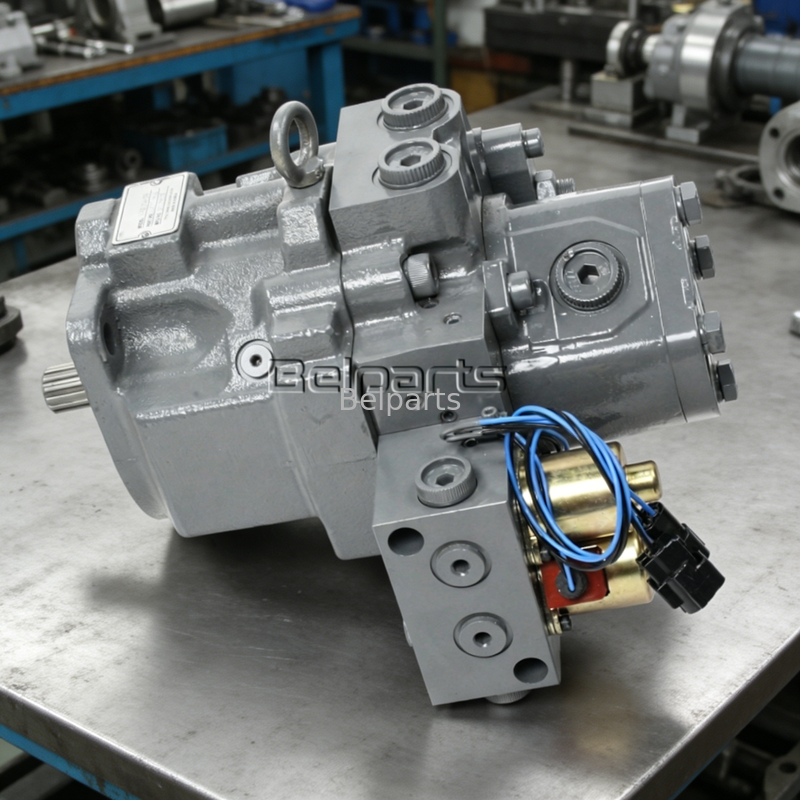

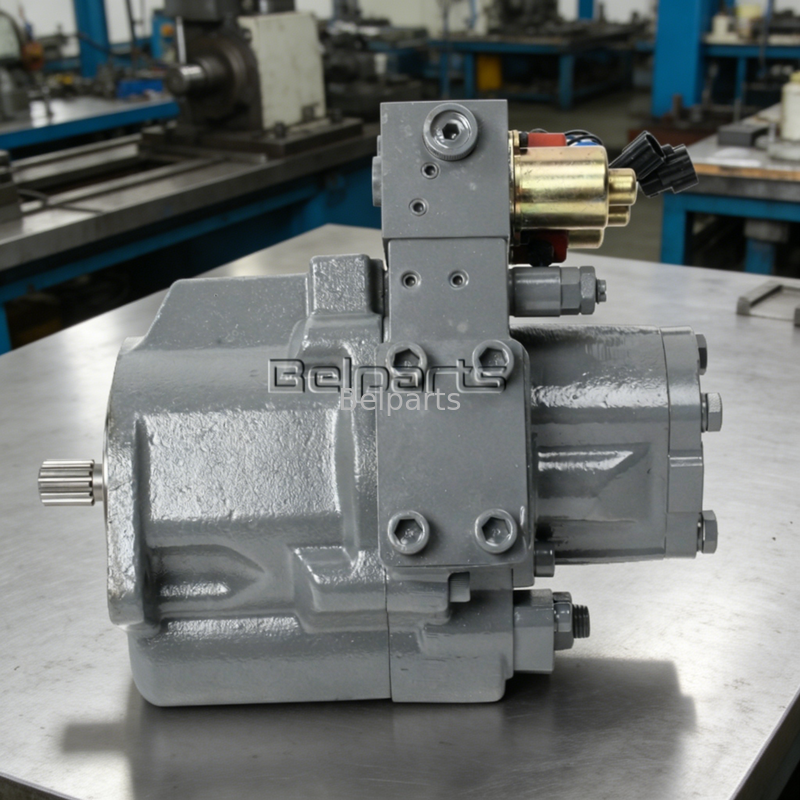

172141-73100 Rexroth AP2D14 Main Hydraulic Pump for Yanmar B22 Series Mini Excavator (Point-by-Point Layout)

1. OEM Part Number & Machine Compatibility

Yanmar OEM part number: 172141-73100
Core pump model: Rexroth Uchida AP2D14 variable displacement piston pump
Full compatible excavator models: Yanmar B22, B22-1, B22-2, B22-2A, B22-2B
Unified mounting structure fits all generation iterations of the B22 platform for direct replacement installation

2. Core Technical Specifications

Structure type: Tandem variable axial piston main pump integrated with built-in pilot gear pump
Main pump displacement: 14 cc/rev
Rated system working pressure: 24.5 MPa; preset maximum relief pressure: 31.4 MPa
Designed maximum operating rotation speed matches original engine rated speed configuration
Input shaft spline, mounting flange and all hydraulic port positions strictly follow OEM dimensional standard
Pump housing made of ductile iron; internal pistons and valve plates adopt wear-resistant quenched steel for long service lifespan

3. Internal Structure & Functional Introduction

Main piston pump supplies high-pressure hydraulic oil to drive boom, arm, bucket, travel and swing movements
Integrated pilot gear pump provides stable oil supply for pilot control circuit and system oil replenishment
Built-in power regulator automatically adjusts pump output flow according to load variation to avoid engine stalling under heavy digging conditions
Compact integrated design saves installation space inside the mini excavator hydraulic compartment

4. Product Advantages

Exact 1:1 OEM casting dimension, consistent bolt layout and oil port layout, enabling plug-and-play replacement without pipeline or chassis modification
Every finished pump undergoes complete hydraulic bench testing for pressure, flow stability and internal leakage inspection before delivery
Complete set of maintenance spare parts including overhaul seal kits, piston assemblies, swash plates and valve plates are available for individual repair replacement
Unified specification for all B22 serial variants, simplifying spare part stocking and inventory management

5. Packaging & Global Delivery Details

Input shaft and all oil ports are coated with anti-rust protective grease and sealed with dust plugs
Entire pump wrapped with moisture-proof plastic film and fixed inside export-grade solid wooden crate to prevent collision and damp damage during long-distance sea or air transit
In-stock items can be arranged for shipment within 3 to 5 working days after order confirmation
Multiple global shipping solutions available: international air express, sea LCL/FCL bulk shipment and overland truck transportation

6. FAQ

Q: Is this pump interchangeable among B22, B22-1, B22-2, B22-2A and B22-2B?
A: Yes, this AP2D14 pump with part number 172141-73100 is universally applicable for all listed B22 generation models with identical installation size and hydraulic matching parameters.
Q: Are individual repair components available for this hydraulic pump?
A: Matching overhaul seal kits, piston shoe assemblies, valve plates, swash plates and pilot gear pump spare parts are all in stock for partial overhaul maintenance.
Q: What does AP2D14 represent?
A: AP2D14 is the original Rexroth Uchida pump model code, while 172141-73100 is the exclusive OEM part number assigned by Yanmar for this assembly.
